Fuel Pump (FP) Module Mounted Sender

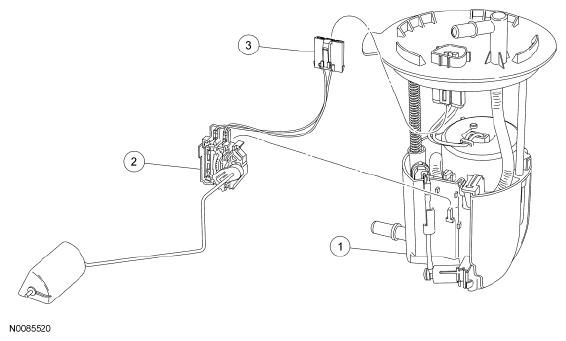

Fig 1: Identifying Fuel Pump (FP) Module Mounted Sender Components
G06064480Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 9H307 Fuel Pump (FP) module
2 9A299 Fuel level sender
3 - Fuel level sender electrical connector (part of 9A299)
