Transmission Shift Cable

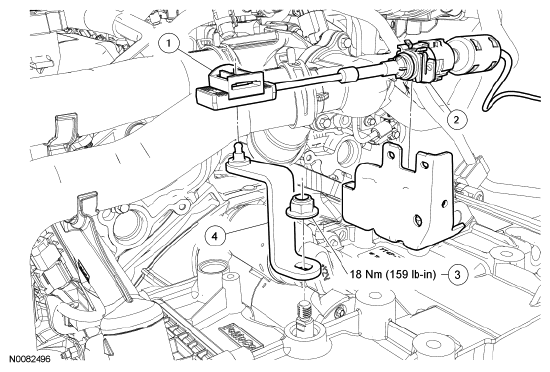

Fig 1: Exploded View Of Transmission Shift Cable With Torque Specifications
G06064177Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7E395 Transmission shift cable adjustment lock
2 7H181 Transmission shift cable rotating slide snap
3 W520103 Transmission manual control lever nut
4 7A257 Transmission manual control lever
