Removal And Installation: Thermostat: Material

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Premium Gold Engine Coolant with Bittering Agent (bittered in US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1
Motorcraft® Specialty Green Engine Coolant VC-10-A (US); CVC-10-A (Canada)	WSS-M97B55-A

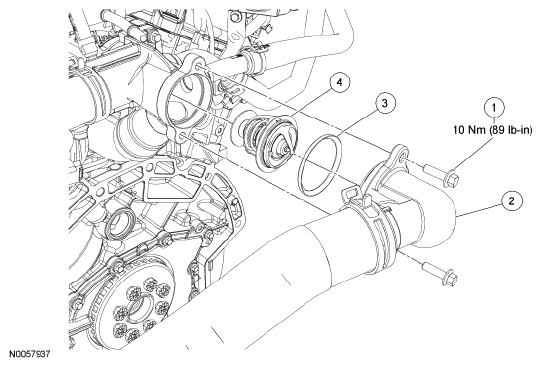

Fig 1: Thermostat Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W500014	Thermostat housing cover bolt (2 required)
2	8594	Thermostat housing cover
3	-	O-ring seal
4	8575	Thermostat
