Degas Bottle: Notes

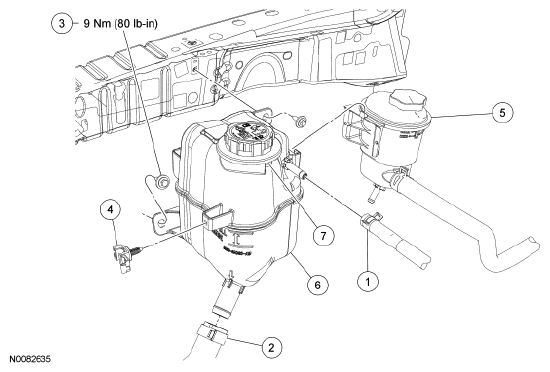

Fig 1: Degas Bottle Replacement Components With Torque Specifications
G06063067Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 8B541 Upper degas bottle hose
2 8W005 Lower degas bottle hose
3 W706681 Degas bottle bolt (2 required)
4 19B632 Pin-type retainer
5 3E764 Power steering reservoir
6 8A080 Degas bottle
7 8101 Pressure relief cap
