Cooling Fan Motor and Shroud: Notes

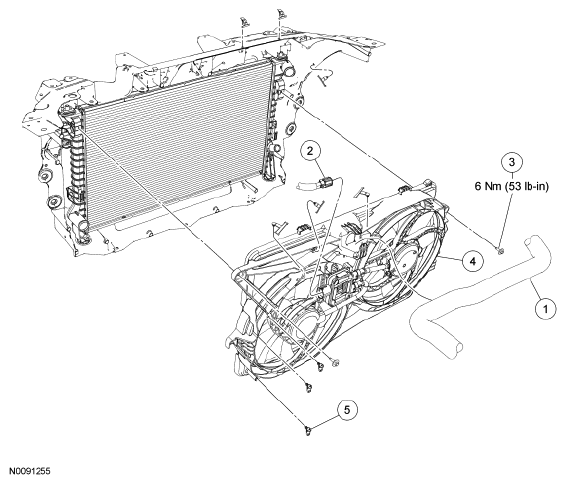

Fig 1: Exploded View Of Cooling Fan Motor And Shroud With Torque Specification
G06063065Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 8B274 Upper radiator hose
2 14A464 Cooling fan motor electrical connector
3 W503924 Cooling fan motor and shroud bolt (2 required)
4 8C607 Cooling fan motor and shroud
5 - Wire harness retainer (9 required) (part of 14290)
