Evaporative Emission (EVAP) System Components - Exploded View

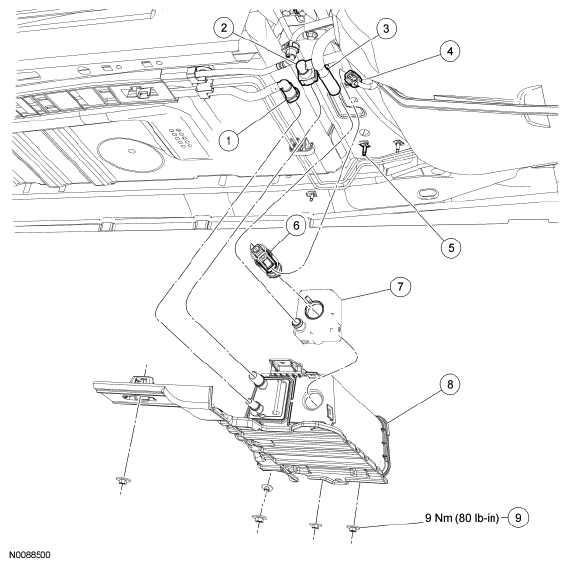

Fig 1: Exploded View Of Evaporative Emission (EVAP) System Components With Torque Specification

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Fuel vapor tube-to-Evaporative Emission (EVAP) canister quick connect coupling (part of 9G700)
2	-	Fuel vapor tube assembly-to- EVAP canister quick connect coupling (part of 9C015)
3	-	Fresh air hose-to-dust separator
4	14A464	EVAP canister vent solenoid electrical connector
5	W711411	EVAP canister J-clip mounting stud (4 required)
6	9F945	EVAP canister vent solenoid
7	9G676	Dust separator
8	9E857	EVAP canister
9	W711059	EVAP canister nut (5 required)

1. For additional information, refer to the appropriate procedures.
