Battery and Battery Tray - Exploded View

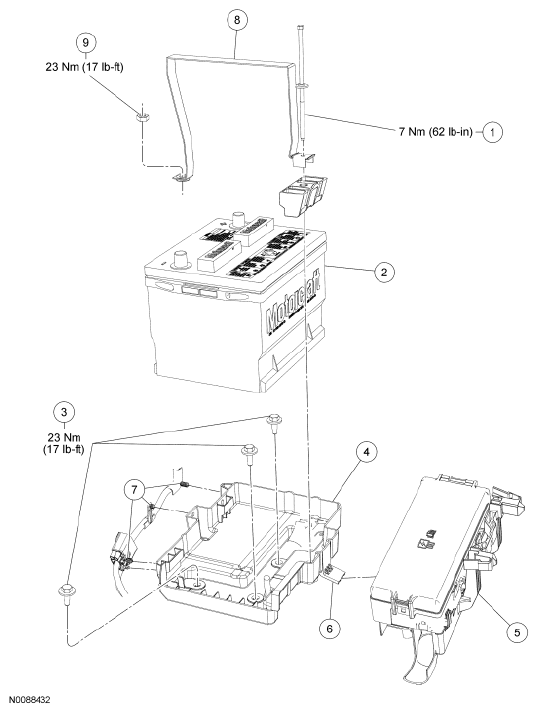

Fig 1: Exploded View Of Battery And Battery Tray With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	10747	Battery hold-down clamp and bolt
2	10655	Battery
3	N811453-S	Battery tray bolts (3 required)
4	10723	Battery tray
5	-	Power Distribution Box (PDB)
6	-	PDB fastener (part of 10723)
7	-	Wire harness fasteners (part of 14230)
8	-	Battery hold-down strap
9	-	Battery hold-down strap nut

1. For additional information, refer to the appropriate procedures..
