Battery Cables: Notes

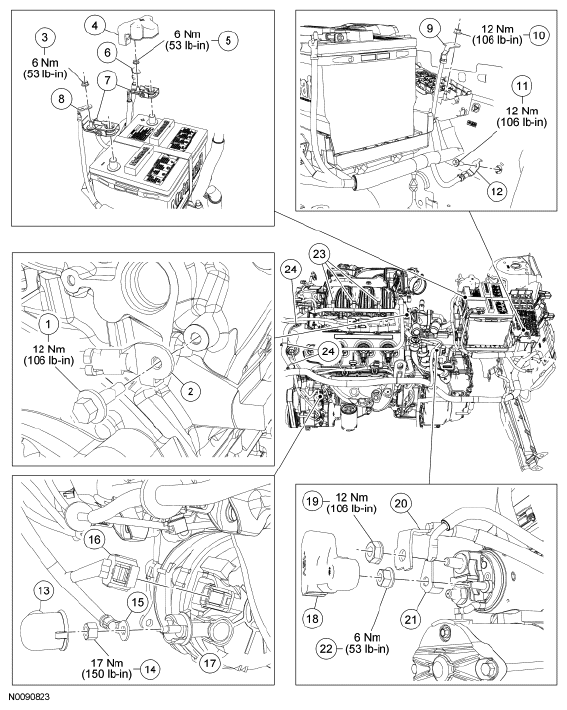

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W506412 | Engine ground cable bolt |
| 2 | - | Engine ground cable end (part of 14B060) |
| 3 | S705790 | Battery negative terminal cable end nut |
| 4 | - | Battery positive protective cover |
| 5 | S705790 | Battery positive terminal cable end nut |
| 6 | - | Battery positive terminal cable end (part of 14B060) |
| 7 | W703847 | Battery cable terminals |
| 8 | W705764 | Battery positive cable end (part of 14B060) |
| 9 | - | Battery Junction Box (BJB) cable end (part of 14B060) |
| 10 | S705790 | BJB cable nut |
| 11 | - | Body ground cable bolt |
| 12 | - | Body ground cable terminal (part of 14B060) |
| 13 | - | Generator B+ terminal cover |
| 14 | W711953 | Generator B+ cable nut |
| 15 | - | Generator B+ cable end (part of 14B060) |
| 16 | - | Generator electrical connector (part of 14B060) |
| 17 | - | Generator B+ terminal |
| 18 | 11N087 | Starter terminal cover |
| 19 | W706414-S | Starter B+ cable nut |
| 20 | - | Battery cable starter cable |
| 21 | - | Starter solenoid cable terminal (part of 14B060) |
| 22 | W805320 | Battery cable starter solenoid terminal nut (S-terminal) |
| 23 | - | Battery cable harness locators (part of 14B060) |
| 24 | 14A163 | Battery cable locators (3 required) |
