Console - Rear, Floor

NOTE: Rear floor console with refrigerator shown in illustration, rear floor console without refrigerator similar.

Rear floor consoles equipped with refrigerator

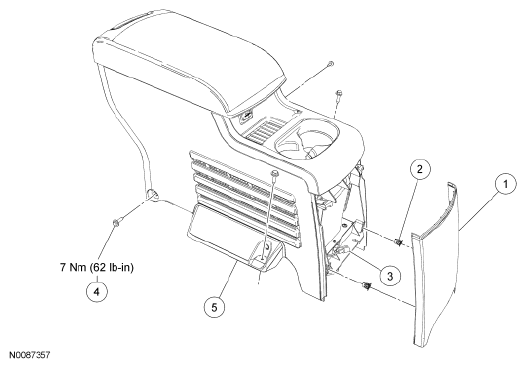

Fig 1: Console With Torque Specification - Rear, Floor

Courtesy of FORD MOTOR CO.

SPECIFICATIONS

Item	Part Number	Description
1	04567	Rear floor console front trim panel
2	W710338	Rear floor console front trim panel retaining clip (2 required)
3	-	Refrigerator electrical connector
4	W705549	Rear floor console bolt (4 required)
5	045C22	Rear floor console

Pull the bottom of the rear floor console front trim panel outward to release the retaining clips.

Fig 2: Pulling Bottom Of Rear Floor Console Front Trim Panel Outward To Release Retaining Clips
Courtesy of FORD MOTOR CO.
Pull the rear floor console front trim panel downward to remove the rear floor console front trim panel.

Fig 3: Pulling Rear Floor Console Front Trim Panel Downward To Remove Rear Floor Console Front Trim Panel
Courtesy of FORD MOTOR CO.
Disconnect the refrigerator electrical connector.

Fig 4: Locating Refrigerator Electrical Connector
Courtesy of FORD MOTOR CO.

All rear floor consoles
Fold and tilt the 2nd row passenger seats forward.
Remove the 4 rear floor console bolts.
- To install, tighten to 7 Nm (62 lb-in).
Remove the rear floor console.
To install, reverse the removal procedure.
- Transfer parts as needed.
- Make sure to align the trim panel retaining clips to the retaining clip holes in the rear floor console.
