Instrument Cluster (IC): Notes

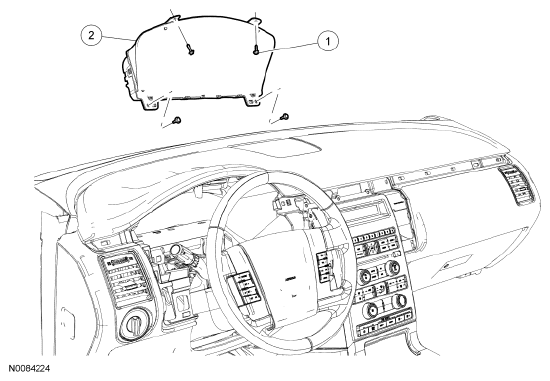

Fig 1: Identifying Instrument Cluster (IC) Components
G06065108Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 W707628 Instrument Cluster (IC) screws (4 required)
2 10849 IC
