Exploded View

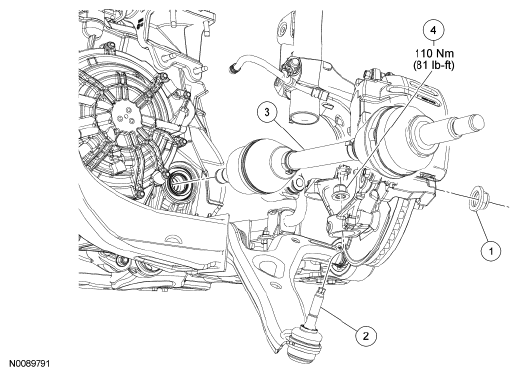

Fig 1: Halfshaft Replacement Components (LH) With Torque Specifications
G06065032Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W712435 Front wheel hub nut
2 3051LH Ball joint and arm
3 3B437 Halfshaft assembly
4 W710015 Ball joint nut
