Parking Brake - Exploded View

Fig 1: Exploded View Of Parking Brake (1 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Cable-to-cable union (part of 2853)
2	2A635-B	Parking brake cable (RH)
3	W505261	Parking brake cable bracket bolts (3 required)
4	W505255	Parking brake cable wireform bracket bolt
5	W506423	Wheel well parking brake cable bracket bolt (2 required)
6	2A635-A	Parking brake cable (LH)
7	-	Parking brake cable wireform bracket (part of 2A635)

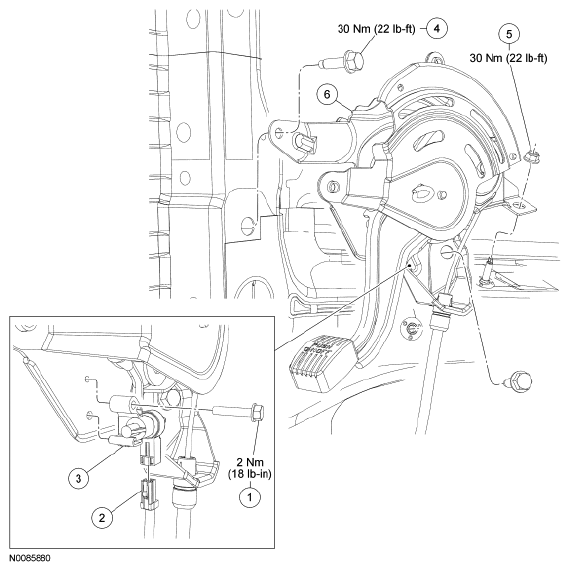

Fig 2: Exploded View Of Parking Brake (2 Of 2) With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Parking brake switch screw (part of 15A51)
2	-	Parking brake switch electrical connector (part of 14A005)
3	15A851	Parking brake switch
4	W712977	Parking brake control bolt (2 required)
5	W7 09990	Parking brake control nut
6	2780	Parking brake control
