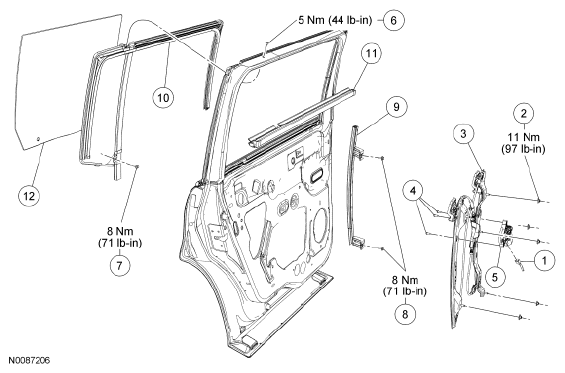

Glass, Frames and Mechanisms - Exploded View, Rear Door
D-PILLAR TRIM PANEL
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electrical connector |
| 2 | W701014 | Window regulator nut (5 required) |
| 3 | 27001 LH/ 27000 RH | Window regulator and motor assembly |
| 3 | 27009 LH/ 27008 RH | Window regulator assembly (without window regulator motor) |
| 4 | - | Window regulator motor screws (3 required) |
| 5 | 23395 LH/ 23394 RH | Window regulator motor |
| 6 | N811106 | Door window glass top run screw |
| 7 | W505423 | Rear door fixed window glass bolt |
| 8 | W505423 | Rear door glass retainer bolts (2 required) |
| 9 | 25797 LH/ 25796 RH | Rear door glass retainer |
| 10 | 25767 LH/ 25766 RH | Rear door top run and fixed glass assembly |
| 11 | 25861 LH/ 25860 RH | Interior door glass weatherstrip |
| 12 | 25713 LH/ 25712 RH | Rear door window glass |
- For additional information, refer to the appropriate procedures.
