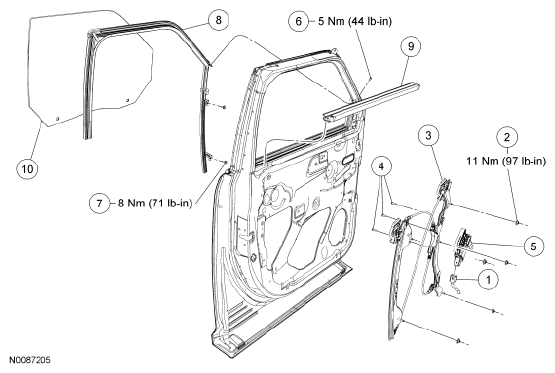

Glass, Frames and Mechanisms - Exploded View, Front Door
B-PILLAR TRIM PANEL
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electrical connector |
| 2 | W701014 | Window regulator nut (5 required) |
| 3 | 23201 LH/ 23200 RH | Window regulator and motor assembly |
| 3 | 23209 LH/ 23208 RH | Window regulator assembly (without window regulator motor) |
| 4 | - | Window regulator motor screws (3 required) |
| 5 | 23395 LH/ 23394 RH | Window regulator motor |
| 6 | N811106 | Front door glass retainer top screw |
| 7 | W505423 | Front door glass retainer bolt (2 required) |
| 8 | 21597 LH/ 21596 RH | Front door top run and glass retainer assembly |
| 9 | 21457 LH/ 21456 RH | Interior door glass weatherstrip |
| 10 | 21411 LH/ 21410 RH | Front door window glass |
- For additional information, refer to the appropriate procedures.
