Removal and Installation

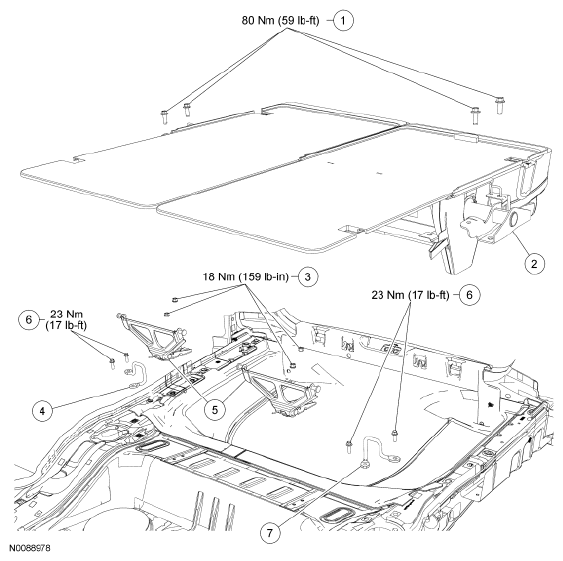

Fig 1: Third Row Seat Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W505285	Seat mounting bracket-to-floor bolts (4 required)
2	-	Seat assembly
3	N804796	Load floor support-to-floor pan nuts
4	62440	RH cushion floor striker
5	60592	Load floor supports
6	W505264	Cushion floor striker-to-floor pan bolts
7	62441	LH cushion floor striker

Remove the left and right side quarter trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the 2 load floor supports (1 shown) from the load floor panel(s).
- Push the load floor support back and lift up on the load floor to disengage.

  Fig 2: Locating Load Floor Support
  Courtesy of FORD MOTOR CO.
Remove the 4 mounting bracket-to-floor bolts and remove the third row seat.
- To install, tighten to 80 Nm (59 lb-ft).
To install, reverse the removal procedure.
- Make sure the safety belt buckles are accessible to the occupants after installation.
