Recliner Cover - 60 Percent Seat

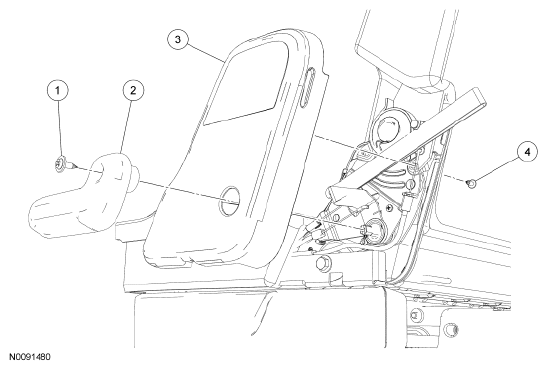

Fig 1: Identifying Second Row Seat Components - Recliner Cover (60 Percent Seat)
G06063516Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W705247 Manual recline handle screw
2 617D35 Manual recline handle
3 67460 LH recliner outer cover
4 56910 LH recliner outer cover screw
