40 Percent Power-Fold Seat
NOTE:
LH seat shown, RH similar.

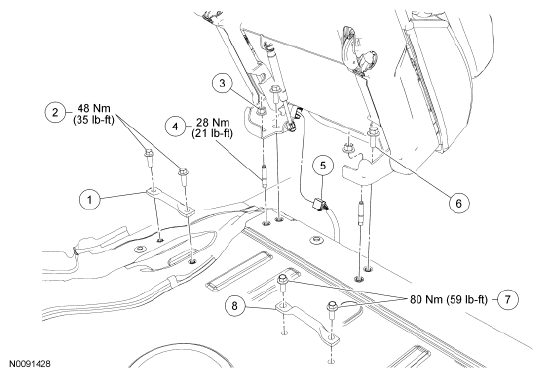

Fig 1: Second Row Seat Replacement Components - 40 Percent Power-Fold Seat With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 613A64 | LH outboard/ RH outboard striker (1 each required) |
| 2 | W505275 | LH outboard/ RH outboard striker-to-floor bolts (4 required) (M10) |
| 3 | N802068 | Seat-to-floor nut (4 required) |
| 4 | W708166 | Floor stud (4 required) |
| 5 | - | Power-fold seat electrical connector |
| 6 | W708175 | Seat-to-floor bolt (4 required) |
| 7 | W714306 | LH inboard striker-to-floor bolts (2 required) (M14) |
| 7 | W505285 | RH inboard striker-to-floor bolts (2 required) (M12) |
| 8 | 613B96 | LH inboard/ RH inboard striker (1 each required) |
