Special Tool(s)

SPECIAL TOOL DESCRIPTION CHART

Courtesy of FORD MOTOR CO.

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

NOTE: Refer to the installation steps for tightening sequence and torque specification.

NOTE: Passenger seat shown, driver seat similar.

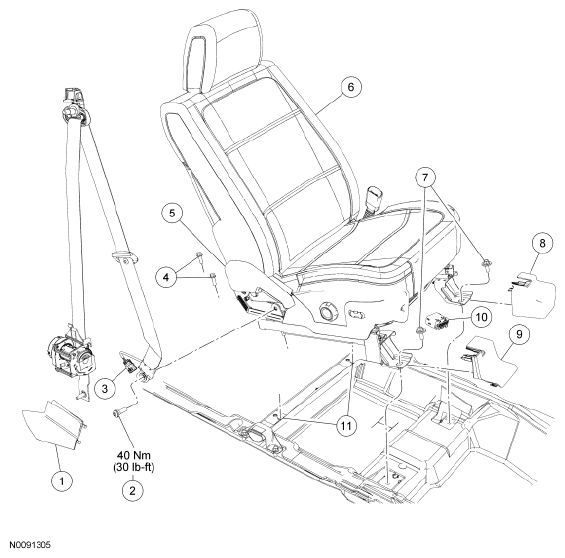

Fig 1: Passenger Front Seat Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	61692	Cushion side shield cover
2	-	Safety belt anchor bolt (part of 612D64)
3	-	Belt Tension Sensor (BTS) electrical connector (part of 612D64) (passenger seat only)
4	W714018	Rear mounting bolts
5	61736	Manual recliner handle (if equipped)
6	-	Passenger seat assembly
7	W709428	Front mounting bolts
8	61748	Front inboard cover
9	61748	Front outboard cover
10	-	Electrical connector(s) (part of 14A005)
11	-	Side Protection and Cabin Enhancement (SPACE®) tube locator pin holes
