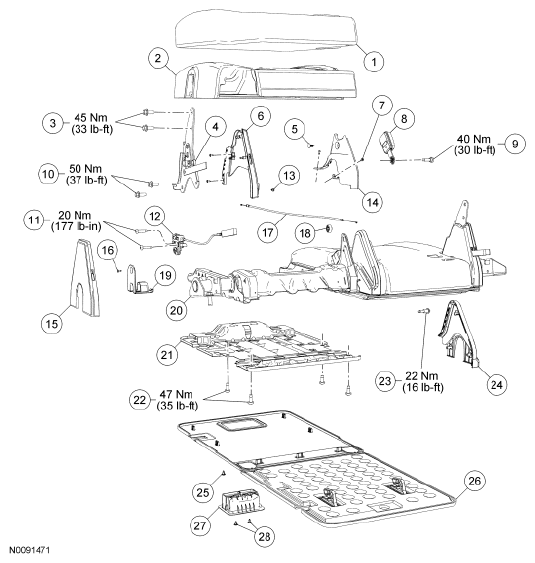

Seat - Exploded View, Third Row: Cushion
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 63805 | Cushion trim cover |
| 2 | 63840 | Cushion foam pad |
| 3 | W790117 | Backrest latch-to-backrest frame bolts (2 required) |
| 4 | 613D60 | RH/ 613D61 LH Backrest latch |
| 5 | W705589 | Pin-type retainer |
| 6 | 67460 | Backrest latch inboard cover |
| 7 | 56910 | Screw (2 required) |
| 8 | 613D48 | Safety belt buckle |
| 9 | - | Safety belt buckle bolt (part of 613D48) |
| 10 | W790117 | Backrest latch-to-cushion frame bolts (2 required) |
| 11 | W790113 | Floor latch bolts (2 required) |
| 12 | 61143 | LH/ 61142 RH Floor latch assembly |
| 13 | 56910 | Screw (3 required) |
| 14 | 61349 | LH/ 61348 RH Inboard pivot cover |
| 15 | 67460 | Backrest latch outboard cover |
| 16 | 56910 | Screw |
| 17 | 601L60 | Pivot release cable |
| 18 | 613B44 | Bushing |
| 19 | 638A75 | LH/ 638A74 RH Floor latch cover |
| 20 | 613B90 | Pivot tube assembly |
| 21 | 63161 | LH/ 63160 RH Cushion frame |
| 22 | W709835 | Cushion frame-to-pivot tube assembly bolts (4 required) |
| 23 | 790112 | Pivot bolt |
| 24 | 61349 | LH/ 61348 RH Outboard pivot cover |
| 25 | W504694 | Screw (2 required) |
| 26 | 60513 | LH/ 60512 RH Load floor panel |
| 27 | 62432 | Pivot release handle |
| 28 | W504694 | Screws (2 required) |
- For additional information, refer to the appropriate procedures.
