Seat - Exploded View, Third Row: Backrest

NOTE: LH shown, RH similar.

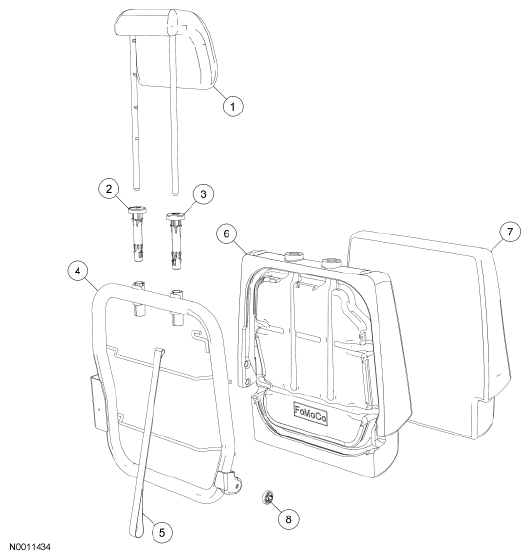

Fig 1: Exploded View Of Third Row Seat (Backrest)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	611A08	Head restraint assembly
2	610A16	Head restraint guide, master
3	610A16	Head restraint guide, slave
4	613A38	RH/ 613A39 LH Backrest frame
5	600A96	Pull strap
6	66800	RH/ 66801 LH Backrest foam pad
7	66601	Backrest trim cover
8	613B44	Bushing
