40 Percent Cushion with Riser

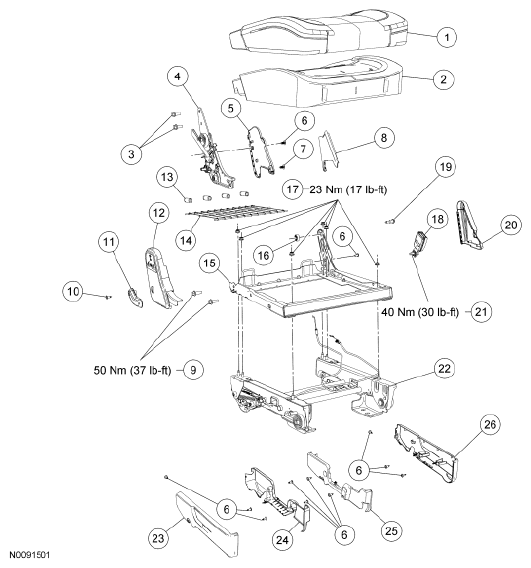

Fig 1: Second Row, 40 Percent, Without Power-Fold Seat Cushion Replacement Components With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 63804 | Cushion trim cover |
| 2 | 63840 | Cushion foam pad |
| 3 | W709835 | Recliner-to-backrest bolts |
| 4 | 61382 | Recliner |
| 5 | 67460 | Inboard recliner cover |
| 6 | 56910 | Screws (12 required) |
| 7 | W705589 | Pin-type retainer |
| 8 | 61348 | Inboard pivot cover |
| 9 | W709835 | Recliner-to-cushion frame bolts |
| 10 | W705247 | Screw |
| 11 | 617D34 | Manual recline handle |
| 12 | 67460 | Recliner outer cover |
| 13 | 64646 | Flex mat spring (4 required) |
| 14 | 63844 | Flex mat |
| 15 | 63160 | Cushion frame |
| 16 | 613B44 | Pivot grommet |
| 17 | W520112 | Cushion frame-to-riser nuts |
| 18 | 60044 | Safety belt buckle |
| 19 | W709835 | Pivot bolt |
| 20 | 61348 | Outboard pivot cover |
| 21 | 61203 | Safety belt buckle bolt (part of 60044) |
| 22 | 606A50 | Riser |
| 23 | 63388 | Riser outboard outer cover |
| 24 | 63386 | Riser outboard inner cover |
| 25 | 63387 | Riser inboard inner cover |
| 26 | 63389 | Riser inboard outer cover |
