Passenger Seat Backrest With Power Seat Track

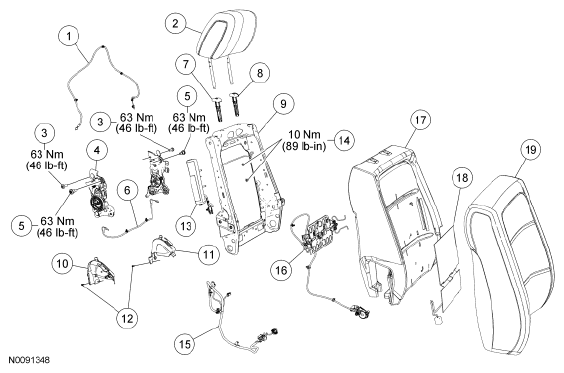

Fig 1: Passenger Seat Backrest With Power Seat Track Replacement Components With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 601L60 | Fold-flat cable |
| 2 | 611A08 | Head restraint assembly |
| 3 | W702016 | Recliner-to-backrest frame rear bolts (without shoulder) |
| 4 | - | LH/ RH recliner (part of 61018) |
| 5 | W713813 | Recliner-to-backrest frame front bolts (with shoulder) |
| 6 | 62756 | Recliner cable |
| 7 | 610A18 | Outboard head restraint guide |
| 8 | 610A16 | Inboard head restraint guide |
| 9 | 61018 | Backrest frame |
| 10 | 62186 | Outboard recliner inner cover |
| 11 | 62187 | Inboard recliner inner cover |
| 12 | W710752 | Scrivets |
| 13 | 611D10 | Side air bag module |
| 14 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 15 | 14D232 | Backrest wire harness (if equipped) |
| 16 | 65500 | Manual lumbar adjust assembly |
| 17 | 64810 | Backrest foam pad |
| 18 | 14D696 | Backrest heater mat (if equipped) |
| 19 | 64416 | Backrest trim cover |
