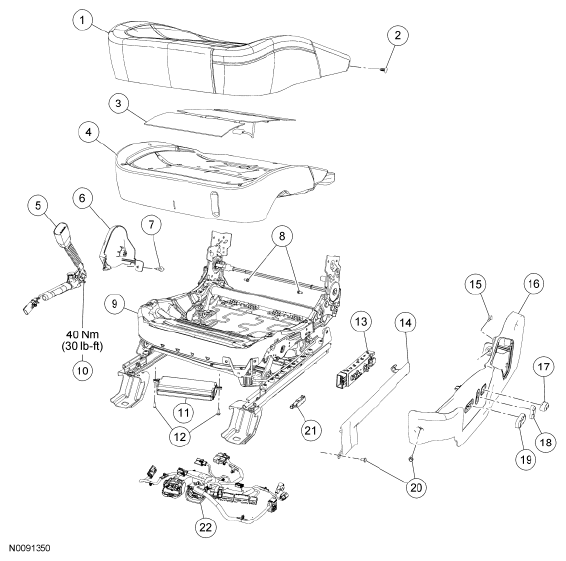

Driver Seat Cushion With Power Recline
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 62901 | Cushion trim cover |
| 2 | W705589 | Pin-type retainer |
| 3 | 14D698 | Cushion heater mat |
| 4 | 632A23 | Cushion foam pad |
| 5 | 61203 | Safety belt buckle and pretensioner |
| 6 | 62187 | Recliner cover |
| 7 | W710752 | Scrivet |
| 8 | W506841 | Screws (2 required) |
| 9 | 61711 | Seat track |
| 10 | - | Safety belt buckle and pretensioner bolt (part of 61203) |
| 11 | 14D716 | Driver Seat Module (DSM) |
| 12 | W713899 | Screws (2 required) |
| 13 | 14A701 | Seat control switch |
| 14 | 61749 | Seat track cover |
| 15 | W710752 | Scrivet |
| 16 | 62187 | Cushion side shield |
| 17 | 14711 | Lumbar control knob |
| 18 | 14711 | Backrest control knob |
| 19 | 14711 | Seat track control knob |
| 20 | W713899 | Screws |
| 21 | 14B416 | Seat position sensor |
| 22 | 14D231 | Cushion wire harness |
