Driver Power Seat Cushion With Manual Recline

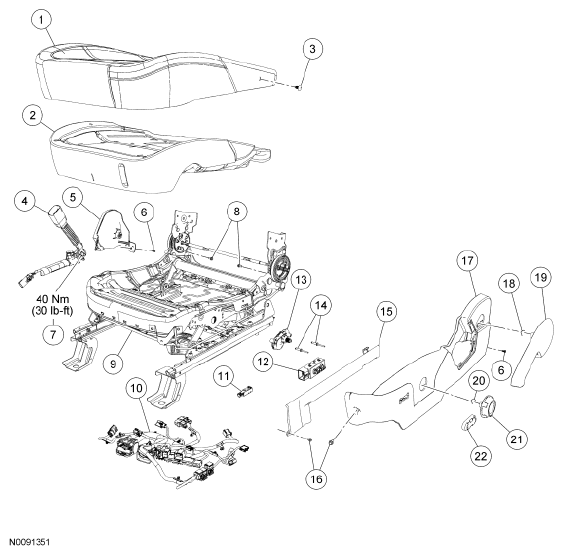

Fig 1: Exploded View Of Seat - Driver Power Seat Cushion With Manual Recline With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 62901 | Cushion trim cover |
| 2 | 632A23 | Cushion foam pad |
| 3 | W705589 | Pin-type retainer |
| 4 | 61203 | Safety belt buckle and pretensioner |
| 5 | 62186 | Recliner cover |
| 6 | W710752 | Scrivets |
| 7 | - | Safety belt buckle and pretensioner bolt (part of 61203) |
| 8 | W506841 | Screws (2 required) |
| 9 | 61711 | Seat track |
| 10 | 14D231 | Cushion wire harness |
| 11 | 14B416 | Seat position sensor |
| 12 | 14A701 | Seat control switch |
| 13 | - | Manual lumbar adjuster (part of 65500) |
| 14 | W713066 | Rivets (2 required) |
| 15 | 61748 | Seat track cover |
| 16 | W713899 | Screws |
| 17 | 62187 | Cushion side shield |
| 18 | W790123 | Manual recliner handle clip |
| 19 | 61737 | Manual recliner handle |
| 20 | W790123 | Manual lumbar handle clip |
| 21 | 62622 | Manual lumbar handle |
| 22 | W790123 | Seat track control knob |
