Power Passenger Seat Track

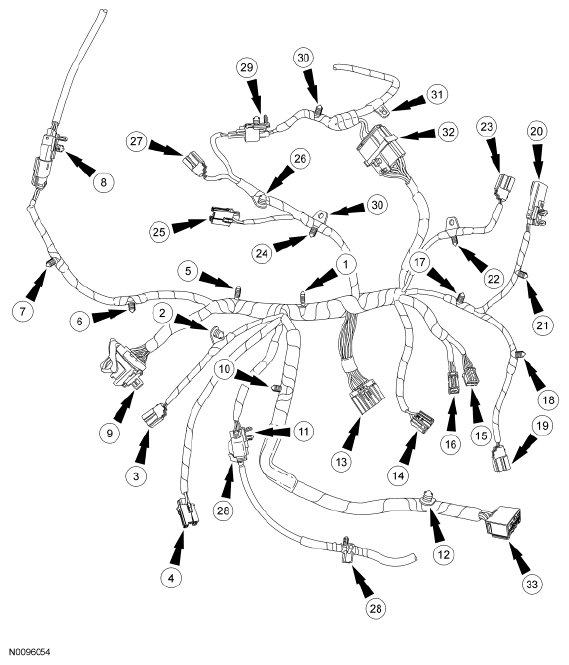

Wire Harness View

NOTE: Illustrations show wire harness with heat. If not equipped with heat option, skip heated seat numerical option content.
Fig 1: Checking Wire Harness View
G06063347Courtesy of FORD MOTOR CO.

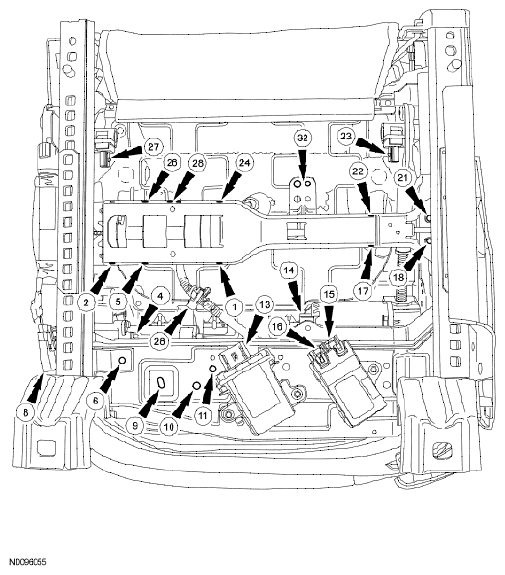

Wire Harness Retainer and Connector Location View

NOTE: See supporting views for missing numbers.
Fig 2: Identifying Wire Harness Retainer And Connector Location View
G06063348Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Description
1 Seat wire harness main retainer
2 Occupant Classification Sensor (OCS) weight sensor bolt 4 wire harness retainer
3 OCS  weight sensor bolt 4 electrical connector
4 Front height motor electrical connector
5 Seat wire harness main retainer
6 Safety belt buckle and pretensioner wire harness retainer
7 Safety belt buckle and pretensioner wire harness retainer
8 Safety belt buckle and pretensioner electrical connector and retainer
9 Seat wire harness main electrical connector and retainer
10 Seat control switch wire harness retainer
11 Cushion heater mat electrical connector and retainer
12 Seat control switch wire harness retainer
13 Occupant Classification System Module (OCSM) electrical connector
14 Rear height motor electrical connector
15 Heated seat module electrical connector (large)
16 Heated seat module electrical connector (small)
17 OCS weight sensor bolt 1 wire harness retainer
18 OCS weight sensor bolt 1 wire harness retainer
19 OCS weight sensor bolt 1 electrical connector
20 Belt Tension Sensor (BTS) wire harness electrical connector and retainer
21 BTS wire harness retainer
22 OCS weight sensor bolt 2 wire harness retainer
23 OCS weight sensor bolt 2 electrical connector
24 OCS weight sensor bolt 3 wire harness retainer
25 Horizontal motor electrical connector
26 OCS weight sensor bolt 3 wire harness retainer
27 OCS weight sensor bolt 3 electrical connector
28 Cushion heater mat component side electrical connector and retainer
29 Side air bag electrical connector and retainer
30 Backrest wire harness retainer
31 Backrest wire harness retainer
32 Backrest wire harness electrical connector and retainer
33 Seat control switch electrical connector (1)
(1) Make sure the wire harness passes on the correct side, as shown.

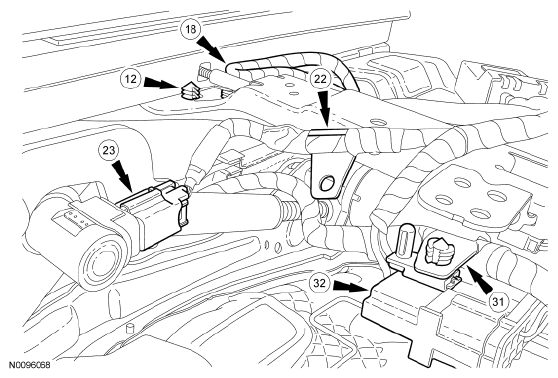

Retainer and Connector Location View, Outboard Side From Underneath

Fig 3: Identifying Retainer And Connector Location View, Outboard Side From Underneath
G06063349Courtesy of FORD MOTOR CO.

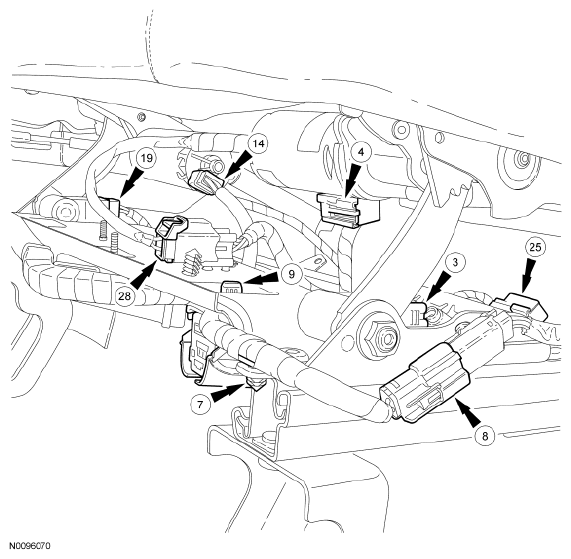

Retainer and Connector Location View, Front Inboard

Fig 4: Identifying Retainer And Connector Location View, Front Inboard
G06063350Courtesy of FORD MOTOR CO.

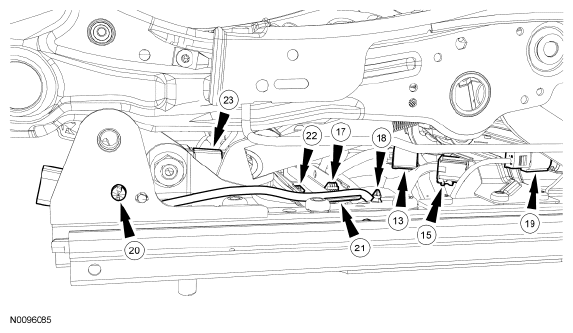

Retainer and Connector Location View, Outboard Side

Fig 5: Identifying Retainer And Connector Location View, Outboard Side
G06063351Courtesy of FORD MOTOR CO.

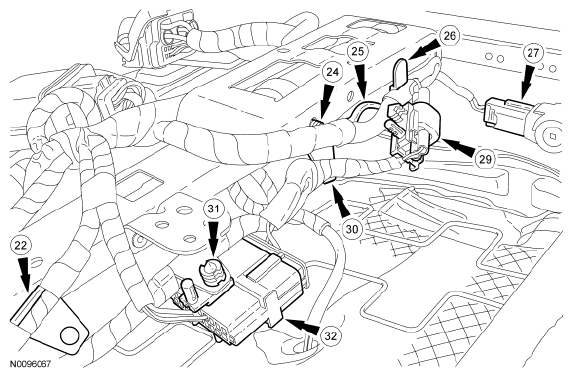

Retainer and Connector Location View, Backrest

Fig 6: Identifying Retainer And Connector Location View, Backrest
G06063352Courtesy of FORD MOTOR CO.

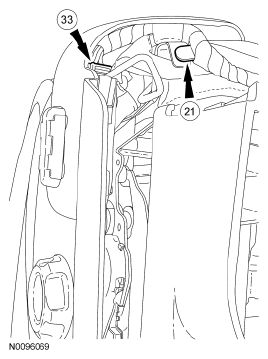

Retainer and Connector Location View, Seat Control Switch

Fig 7: Identifying Retainer And Connector Location View, Seat Control Switch
G06063353Courtesy of FORD MOTOR CO.

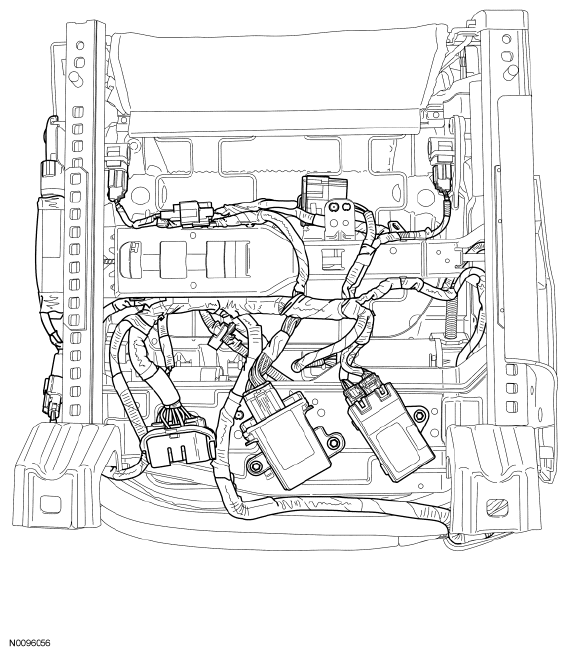

Wire Harness Installed View

Fig 8: Identifying Wire Harness Installed View
G06063354Courtesy of FORD MOTOR CO.
  1. Make sure the passenger seat cushion wire harness is correctly routed and attached.
