Manual Passenger Seat Track

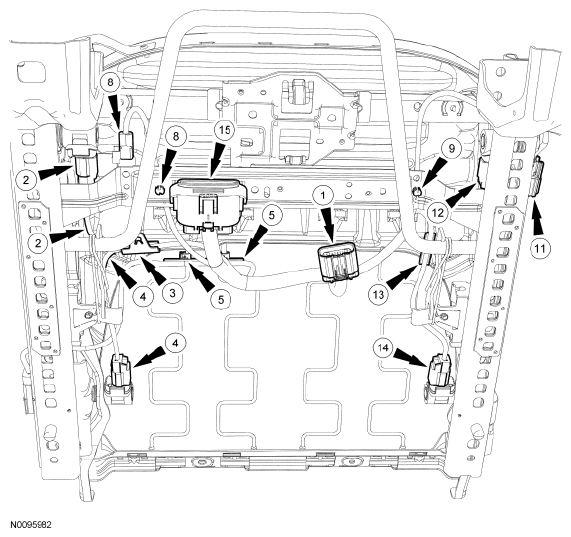

Retainer and Connector Location View, Cushion Frame From Underneath

NOTE: See supporting views for missing numbers.

Fig 1: Identifying Retainer And Connector Location View, Cushion Frame From Underneath

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item

Description

Occupant Classification System Module (OCSM) electrical connector

Occupant Classification Sensor (OCS) weight sensor bolt 1 electrical connector and wire harness

OCS weight sensor bolt 1 and 2 wire harness retainer

OCS weight sensor bolt 2 electrical connector and wire harness

Belt Tension Sensor (BTS) wire harness retainers

BTS wire harness retainer

BTS wire harness electrical connector and retainer

Side air bag module electrical connector and wire harness retainer

Safety belt buckle and pretensioner wire harness retainer

Safety belt buckle and pretensioner electrical connector

OCS weight sensor bolt 4 electrical connector

OCS weight sensor bolt 3 wire harness retainer

OCS weight sensor bolt 3 electrical connector ⁽¹⁾

Seat wire harness main electrical connector and retainer

⁽¹⁾	Make sure the wire harness passes on the correct side of seat track lever, as shown.

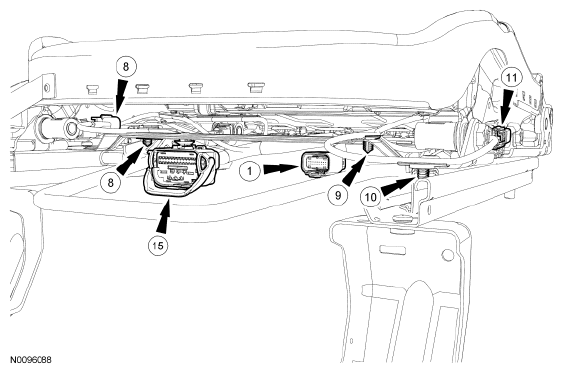

Retainer and Connector Location View, Outboard Side of Seat

Fig 2: Identifying Retainer And Connector Location View, Outboard Side Of Seat

Courtesy of FORD MOTOR CO.

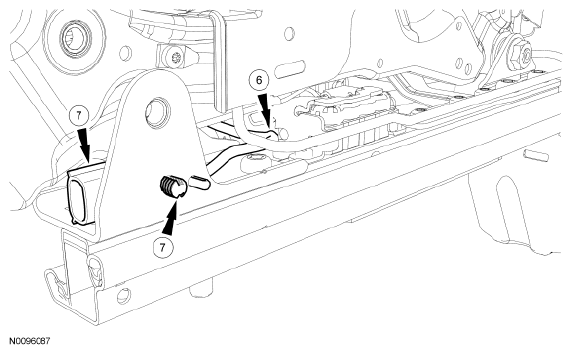

Retainer and Connector Location View, Front of Seat Track

Fig 3: Identifying Retainer And Connector Location View, Front Of Seat Track

Courtesy of FORD MOTOR CO.

Make sure the passenger seat cushion wire harness is correctly routed and attached.
