Driver Seat Backrest With Power Recline
NOTE:
Refer to SEAT BACKREST - FRONT, WITHOUT FOLD FLAT for recliner-to-seat track bolt tightening sequence and torque specification.

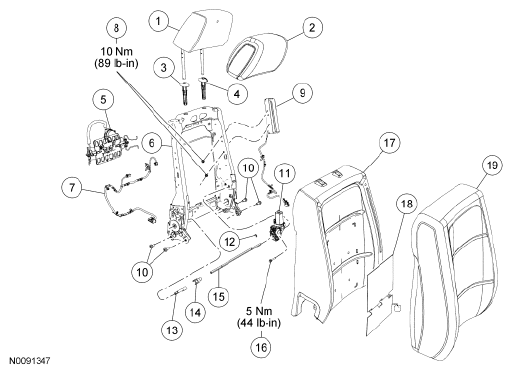

Fig 1: Front, Without Fold Flat Seat Backrest Replacement Components (Driver Seat Backrest With Power Recline) With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint assembly |
| 2 | - | Head restraint trim cover |
| 3 | 610A18 | Inboard head restraint guide |
| 4 | 610A16 | Outboard head restraint guides |
| 5 | 65500 | Power lumbar adjust assembly (if equipped) |
| 6 | 61018 | Backrest frame |
| 7 | 14D232 | Backrest wire harness (if equipped) |
| 8 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 9 | 611D11 | Side air bag module |
| 10 | W702016 | Recliner-to-seat track bolts (4 required) |
| 11 | 14547 | Power recline motor (if equipped) |
| 12 | 61479 | Recliner shaft clip (if equipped) |
| 13 | 613A68 | Short recliner shaft (if equipped) |
| 14 | 613A68 | Sleeve (if equipped) |
| 15 | 613A68 | Long recliner shaft (if equipped) |
| 16 | - | Power recline motor bolt (if equipped) |
| 17 | 64810 | Backrest foam pad |
| 18 | 14D696 | Backrest heater mat (if equipped) |
| 19 | 64416 | Backrest trim cover |
