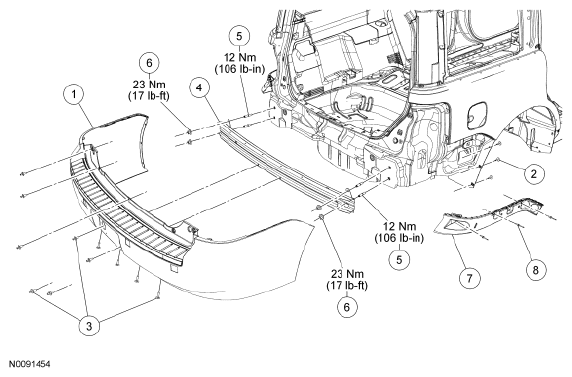

Bumper - Exploded View, Rear
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 17D781 | Rear bumper cover |
| 2 | W710763 | Rear bumper cover wheelhouse screw |
| 3 | W710250 | Rear bumper cover scrivets |
| 4 | 17775 | Rear bumper |
| 5 | W714001 | Rear bumper studs |
| 6 | N621943 | Rear bumper nuts |
| 7 | 17D949 | LH/ 17D948 RH Rear bumper cover mounting reinforcement |
| 8 | W705376 | Rear bumper cover mounting reinforcement rivets |
- For additional information, refer to the procedures in this article.
