Front End Body Panels - Exploded View

NOTE: LH shown, RH similar.

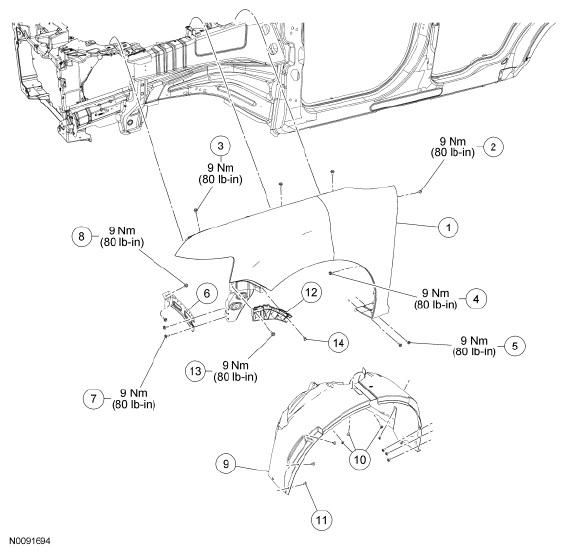

Fig 1: Exploded View Of Front End Body Panels With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	16006 LH/ 16005 RH	Front fender
2	W505423	Front fender-to body bracket bolt
3	W505423	Front fender upper mounting bolt (3 required)
4	W505423	Front fender middle rear bolt
5	W505423	Front fender lower rear bolt (2 required)
6	16A024 LH/ 16A023 RH	Front fender-to-body support
7	W505423	Front fender-to-body mounting support bolt (2 required)
8	W505423	Front fender-to body mounting support-to-body bolt (2 required)
9	16A574	Front fender splash shield
10	W706092	Front fender splash shield scrivets (11 required)
11	W710763	Front fender splash shield screw (3 required)
12	17E814	Front bumper cover reinforcement
13	W505423	Front bumper cover reinforcement bolt
14	W711656	Front bumper cover reinforcement screw

1. For additional information, refer to the procedures in this article.
