Power Liftgate Rod: Material

MATERIAL CHART

Item	Specification
Threadlock 262 TA-26	WSK-M2G351-A6

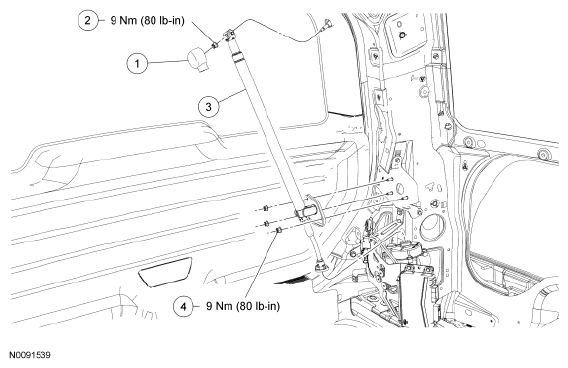

Fig 1: Power Liftgate Rod Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PINPOINT TEST F: ANTI-THEFT INDICATOR IS ALWAYS/NEVER ON

Item	Part Number	Description
1	7821978	Power liftgate rod upper nut cover
2	W520201	Power liftgate rod upper nut
3	74431A78	Power liftgate rod assembly
4	W520201	Power liftgate rod lower nut (3 required)
