Removal And Installation: Liftgate: Material
MATERIAL CHART
| Item | Specification |
|---|---|
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |
PINPOINT TESTS

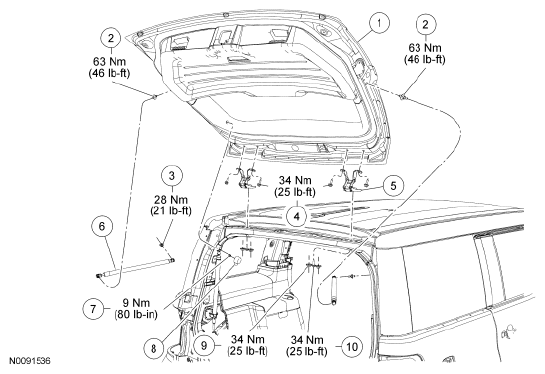

| Item | Part Number | Description |
|---|---|---|
| 1 | 7440010 | Liftgate assembly |
| 2 | W713408 | Liftgate strut-to-liftgate studs (2 required) |
| 3 | W713408 | Liftgate strut-to-body stud (2 required) |
| 4 | N806738 | Liftgate hinge-to-liftgate bolts (4 required) |
| 5 | 7442900 | Liftgate hinge (2 required) |
| 6 | 74406A10 | LH/ 74406A11 RH Liftgate strut (2 required) |
| 7 | W520201 | Power liftgate rod upper nut |
| 8 | 7821978 | Power liftgate rod upper nut cover |
| 9 | W711324 | Liftgate hinge-to-body nut (4 required) |
| 10 | W713162 | Liftgate hinge-to-body bolt (2 required) |
