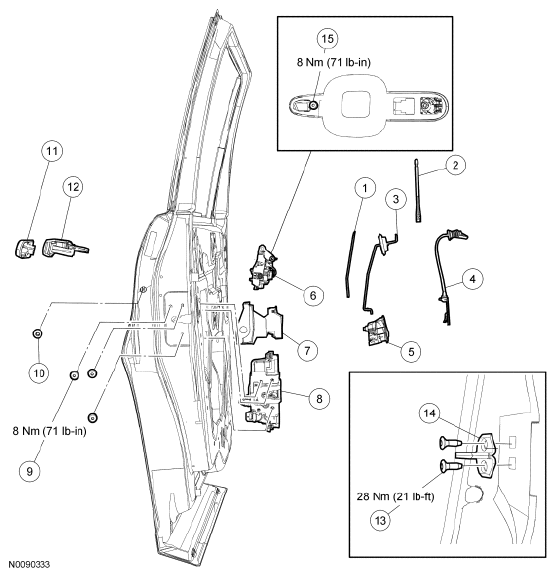

Rear Door Handles, Locks and Latches - Exploded View
REFRIGERATOR
| Item | Part Number | Description |
|---|---|---|
| 1 | 7426597/ 7426596 | Exterior door handle actuating rod (LH/RH) |
| 2 | 7421850 | Door lock rod extension |
| 3 | 7426461/ 7426460 | Door lock rod (LH/RH) |
| 4 | 74221A00 | Door latch remote control |
| 5 | 7422601/ 7422600 | Interior door handle (LH/RH) |
| 6 | 7426685/ 7426684 | Exterior door handle reinforcement (LH/RH) |
| 7 | 74264C29/ 74264C28 | Door latch carrier (LH/RH) |
| 8 | 7426413/ 7426412 | Door latch (LH/RH) |
| 9 | W705830 | Door latch bolts (3 required) |
| 10 | W714032 | Plug |
| 11 | 78218B08 | Exterior door handle bezel |
| 12 | 7822404 | Exterior door handle |
| 13 | W710993 | Striker bolts (2 required) |
| 14 | 7822008 | Striker |
| 15 | - | Exterior door handle reinforcement bolt |
- For additional information, refer to the appropriate procedures.
