Liftgate Release Switch: Notes

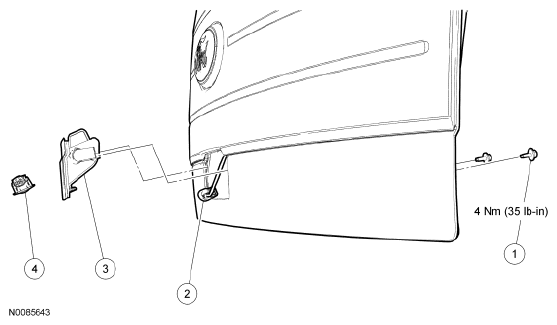

Fig 1: Liftgate Release Switch With Torque Specifications
G06071193Courtesy of FORD MOTOR CO.
PINPOINT TESTS

Item Part Number Description
1 W709393 Liftgate moulding bolts (2 required)
2 - Liftgate release switch electrical connector (part of 14A583)
3 13508 Liftgate moulding
4 14018 Liftgate release switch
