Power Liftgate

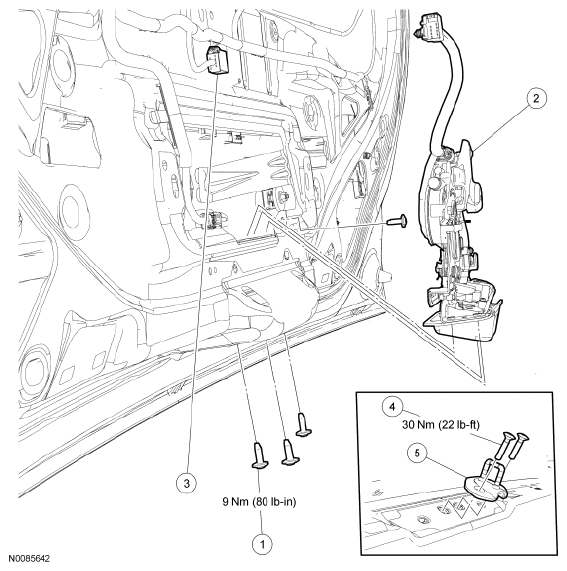

Fig 1: Power Liftgate Latch With Torque Specifications

Courtesy of FORD MOTOR CO.

INSPECTION AND VERIFICATION

Item	Part Number	Description
1	N807675	Liftgate latch bolts (4 required)
2	7843150	Liftgate latch
3	-	Liftgate latch electrical connector (part of 14A583)
4	N710881	Liftgate latch striker bolts (2 required)
5	7443252	Liftgate latch striker
