Manual Liftgate

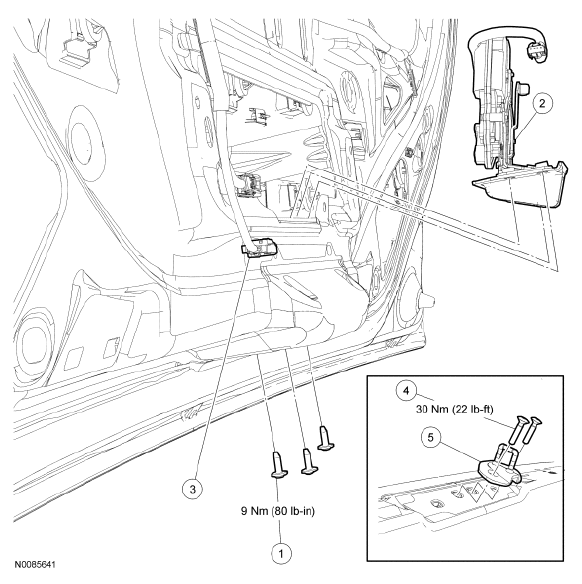

Fig 1: Manual Liftgate Latch With Torque Specifications
G06071191Courtesy of FORD MOTOR CO.
REFRIGERATOR

Item Part Number Description
1 N807675 Liftgate latch bolts (3 required)
2 7843150 Liftgate latch
3 - Liftgate latch electrical connector (part of 14A583)
4 N710881 Liftgate latch striker bolts (2 required)
5 7443252 Liftgate latch striker
