Ignition Lock Cylinder - Functional
>>
Notes
Ignition Lock Cylinder - Functional: Notes

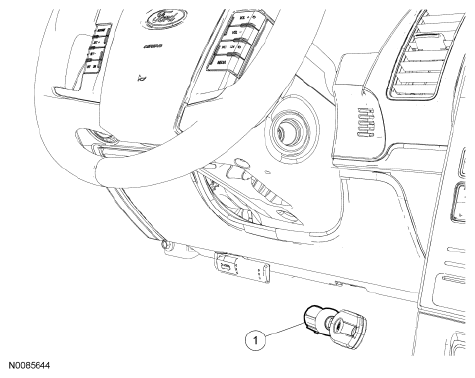

Fig 1: Identifying Ignition Lock Cylinder - Functional
Courtesy of FORD MOTOR CO.
COMPONENT TEST
Item
Part Number
Description
1
11582
Ignition lock cylinder
Courtesy of FORD MOTOR CO.
