Door Lock Control Switch: Notes

NOTE: LH side shown in illustration, RH side similar.

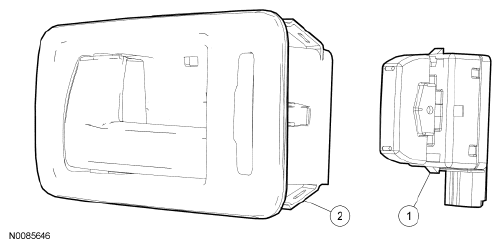

Fig 1: Identifying Door Lock Control Switch
G06071198Courtesy of FORD MOTOR CO.
INSTRUMENT PANEL TRIM PANELS, FINISH PANELS AND ELECTRICAL CONNECTORS

Item Part Number Description
1 14028 Door lock control switch
2 7422601/ 7422600 Interior door handle (LH/RH)
