Passive Anti-Theft System (PATS) Transceiver: Notes

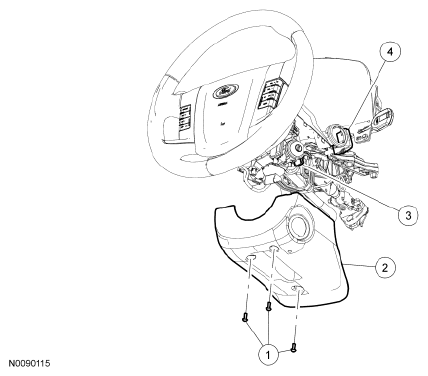

Fig 1: Identifying Passive Anti-Theft System (PATS) Transceiver Components
G06070666Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 W706731-S Lower steering column shroud screws (3 required)
2 3533 Lower steering column shroud
3 - Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401)
4 15607 PATS  transceiver
