Washer Pump and Reservoir
SPECIAL TOOL(S)

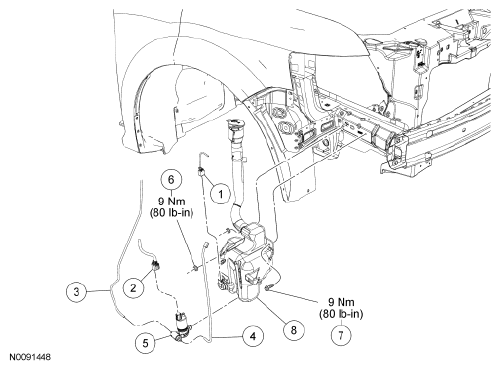

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Washer fluid level switch electrical connector (part of 14290) |
| 2 | - | Washer pump electrical connector (part of 14290) |
| 3 | 17A605A | Windshield washer hose |
| 4 | 17A605B | Rear window washer hose |
| 5 | 17664 | Washer pump assembly |
| 6 | W709603 | Washer reservoir nut (2 required) |
| 7 | W706681 | Washer reservoir bolt |
| 8 | 17618 | Washer reservoir |
- For additional information, refer to the appropriate procedures.
