Rear Wiper

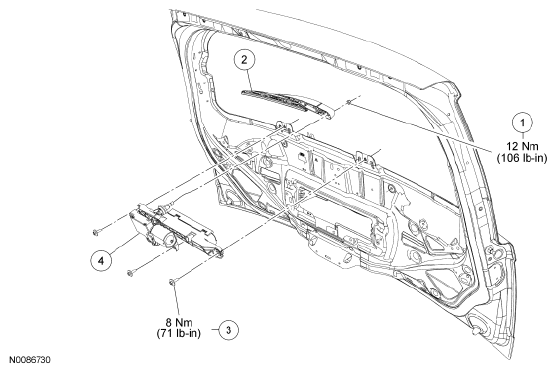

Fig 1: Exploded View Of Rear Wiper With Torque Specifications
G06071246Courtesy of FORD MOTOR CO.
REMOVAL AND INSTALLATION

Item Part Number Description
1 W708312 Rear window wiper pivot arm nut
2 17526 Rear window wiper pivot arm
3 N807658 Rear window wiper motor bolt (3 required)
4 17508 Rear window wiper motor
