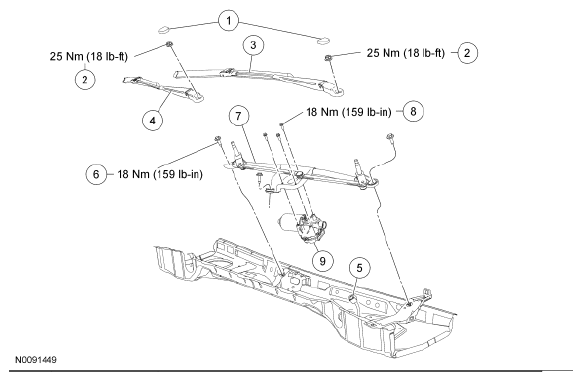

Front Wipers
REMOVAL AND INSTALLATION
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm nut covers |
| 2 | W708841 | Wiper pivot arm nuts (2 required) |
| 3 | 17527 | LH wiper arm |
| 4 | 17526 | RH wiper arm |
| 5 | 14290 | Electrical connector |
| 6 | N806528 | Wiper mounting arm and pivot shaft bolt (3 required) |
| 7 | 17566 | Wiper mounting arm and pivot shaft assembly |
| 8 | - | Wiper motor bolt (3 required) (part of 17508) |
| 9 | 17508 | Wiper motor |
