Driver Seat Module (DSM): Notes

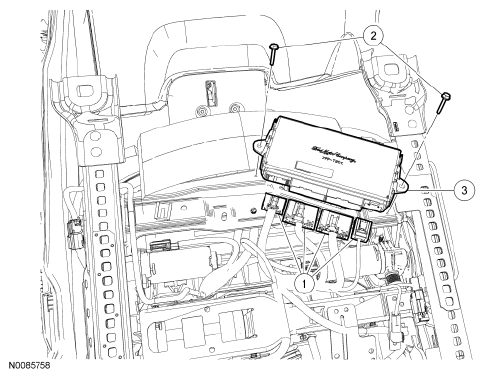

Fig 1: Identifying Driver Seat Module
G06070677Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Driver Seat Module (DSM) electrical connectors (4 required) (part of 14D231)
2 - DSM  bolts (2 required)
3 14C708 DSM
