Video Camera: Notes

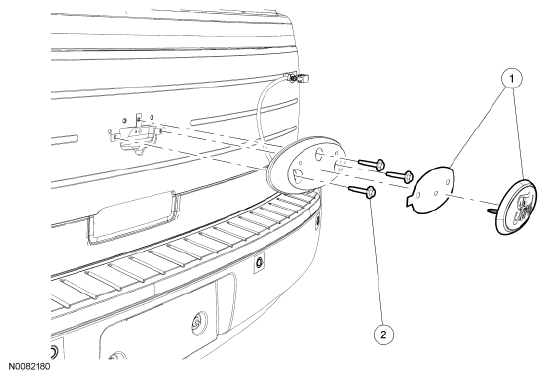

Fig 1: Identifying Video Camera Components

G06065157

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	7843156	Ford oval emblem (adhesive sticker part of the Ford oval)
2	W505426	Ford oval emblem bezel bolts (3 required)

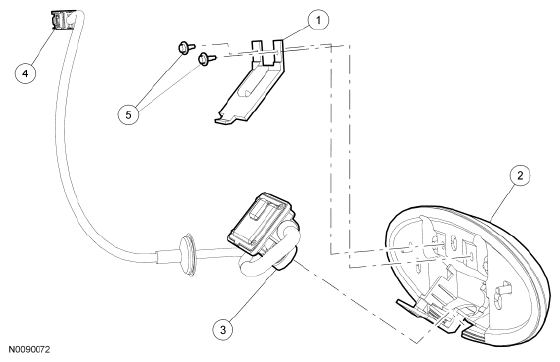

Fig 2: Identifying Video Camera Components

G06065158

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	-	Video camera cover
2	-	Ford oval emblem bezel
3	19H438	Video camera
4	-	Video camera electrical connector
5	-	Video camera cover screws (2 required)
