Parking Aid Module (PAM): Notes

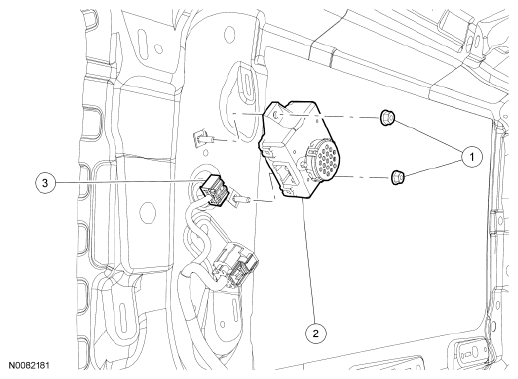

Fig 1: Identifying Parking Aid Module (PAM) Components
G06065154Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 N8005320 Parking Aid Module (PAM) nuts (2 required)
2 15T850 PAM and speaker assembly
3 - PAM electrical connector (part of 14A005)
