Variable Camshaft Timing Solenoid 1 Connector - C1451

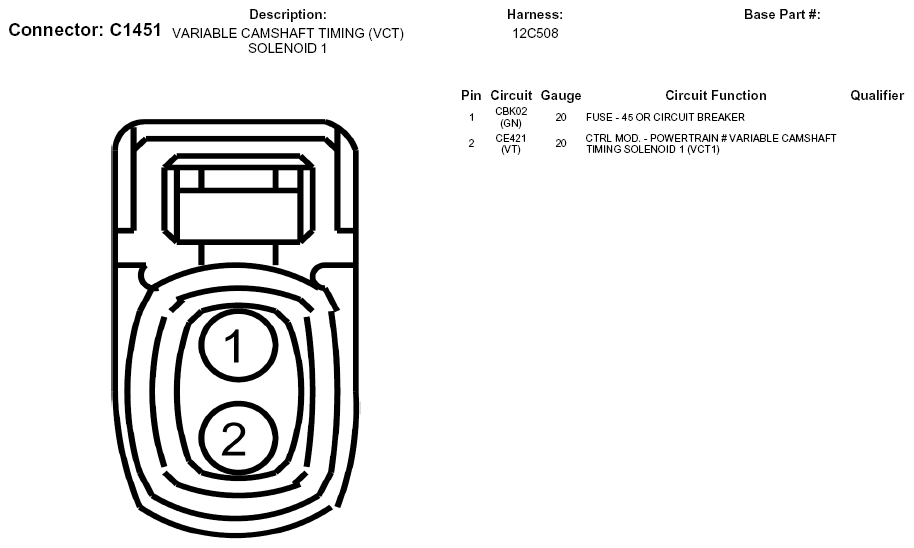

Fig 1: Variable Camshaft Timing Solenoid 1 Connector End View (C1451)

G05776989

Courtesy of FORD MOTOR CO.
