Passenger Seat Cushion With Manual Seat Track
NOTE:
Refer to SEAT BACKREST - FRONT, WITH FOLD FLAT for recliner-to-seat track bolt tightening sequence and torque specification.

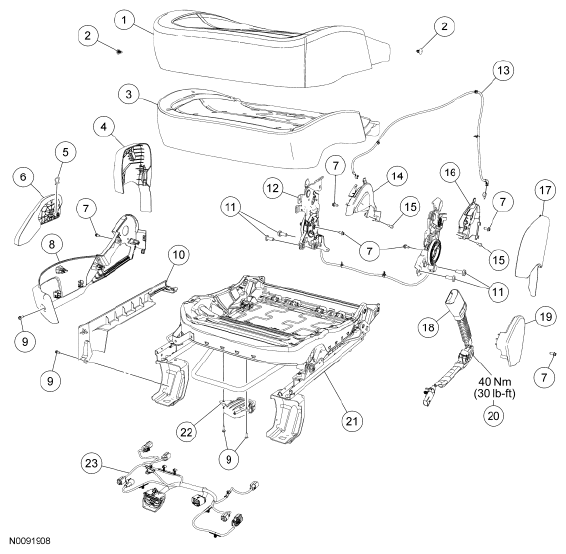

Fig 1: Exploded View Of Seat - Passenger Seat Cushion With Manual Seat Track With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 62901 | Cushion trim cover |
| 2 | W705589 | Pin-type retainers |
| 3 | 632A22 | Cushion foam pad |
| 4 | 62186 | Outboard recliner upper cover |
| 5 | W790123 | Manual recliner handle clip |
| 6 | 61736 | Manual recliner handle |
| 7 | W506841 | Screws |
| 8 | 62186 | Cushion side shield |
| 9 | W713899 | Screws |
| 10 | 61748 | Seat track cover |
| 11 | W702016 | Recliner-to-seat track bolts (4 required) |
| 12 | - | Recliner assembly (part of 61018) |
| 13 | 601L60 | Fold-flat cable |
| 14 | 62186 | Outboard recliner inner cover |
| 15 | W710752 | Scrivets |
| 16 | 62186 | Inboard recliner inner cover |
| 17 | 62187 | Inboard recliner upper cover |
| 18 | 61202 | Safety belt buckle and pretensioner |
| 19 | 62187 | Inboard recliner lower cover |
| 20 | - | Safety belt buckle and pretensioner bolt (part of 61203) |
| 21 | 61710 | Seat track |
| 22 | 14B056 | Occupant Classification System Module (OCSM) |
| 23 | 14D230 | Cushion wire harness |
- For additional information, refer to the appropriate procedures .
