Acceleration/Deceleration Sensor: Service and Repair

Stability Control Sensor Cluster









Removal and Installation

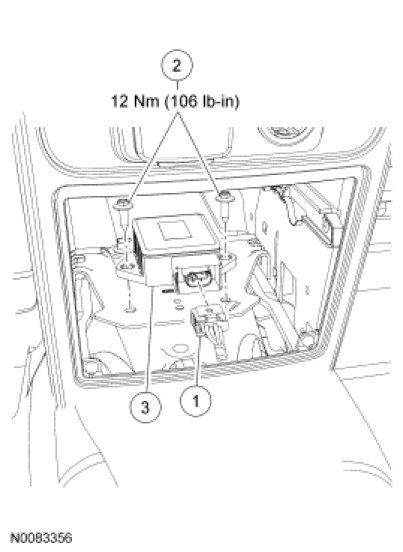

1. Remove the front floor console rear storage compartment.

2. Disconnect the stability control sensor cluster electrical connector.

3. Disconnect the stability control sensor cluster electrical harness retainers and position aside.

4. Remove the 2 stability control sensor cluster bracket bolts and the stability control sensor cluster.
- To install, tighten to 12 Nm (106 lb-in).

5. To install, reverse the removal procedure.
