Muffler and Tailpipe

Muffler and Tailpipe

Removal and Installation

NOTICE: Do not use oil or grease-based lubricants on the isolators. They may cause deterioration of the rubber.

NOTICE: Oil or grease-based lubricants on the isolators may cause the exhaust hanger isolator to separate from the exhaust hanger bracket during vehicle operation.

1. With the vehicle in NEUTRAL, position it on a hoist.

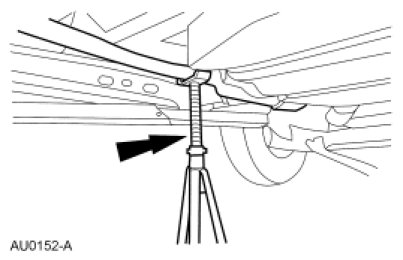

2. Support the muffler and tailpipe with a suitable jackstand.





3. Loosen the Torca(R) clamp nut.
- To install, tighten to 48 Nm (35 lb-ft).

4. NOTICE: Do not damage or tear the isolators during removal.

Using soapy water, separate the 3 isolators and remove the muffler and tailpipe assembly from the vehicle.

5. NOTICE: The intermediate pipe must be supported to prevent damage to the flexible pipe.

Using a length of mechanic's wire, support the intermediate pipe.

6. To install, reverse the removal procedure.
- Install a new gasket and nuts.

- Inspect and replace any isolators damaged or torn during the removal process.

7. Start the engine and check for exhaust leaks.
