Parking Assist Distance Sensor: Service and Repair

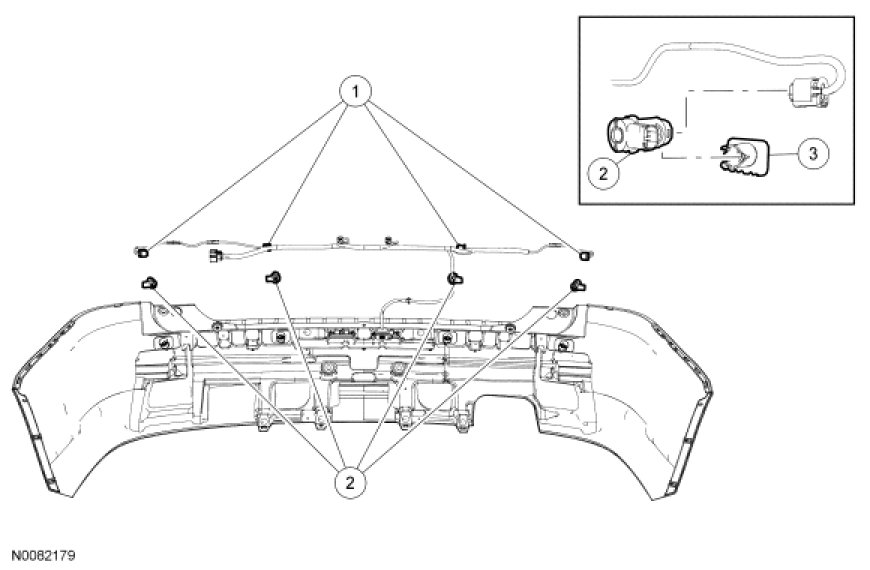

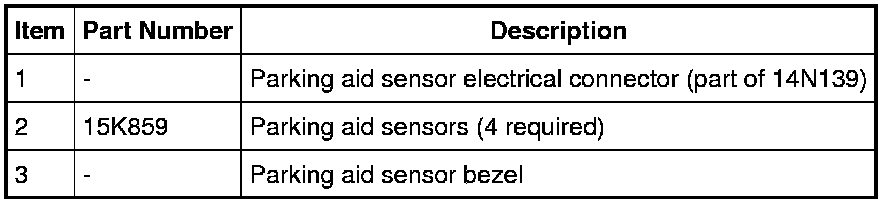

Parking Aid Sensor













Removal and Installation

1. Remove the rear bumper cover.

2. Disconnect the parking aid sensor electrical connector.

3. NOTE: Press the retaining tabs to release the sensor(s).

Remove the parking aid sensor(s).

4. To install, reverse the removal procedure.

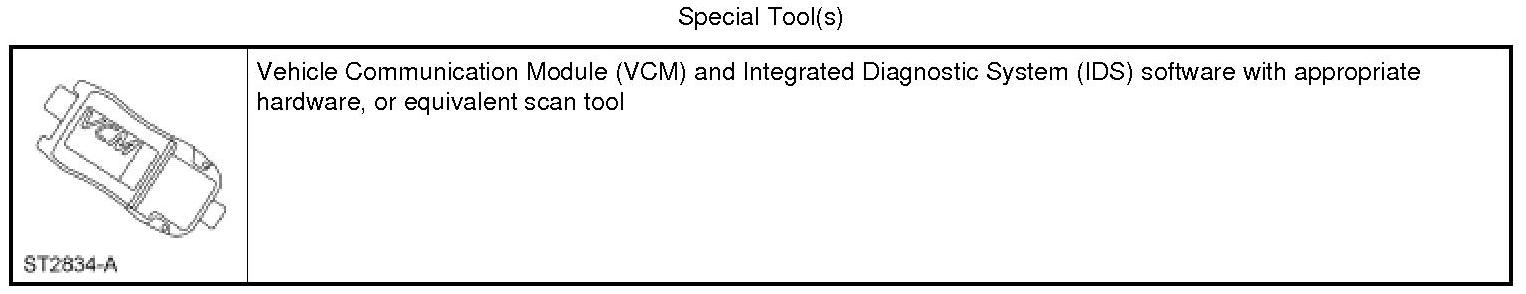

- Using the scan tool, verify that the parking aid sensor PIDs read no object present.
