Antenna Cable: Service and Repair

Antenna Cable - AM/FM

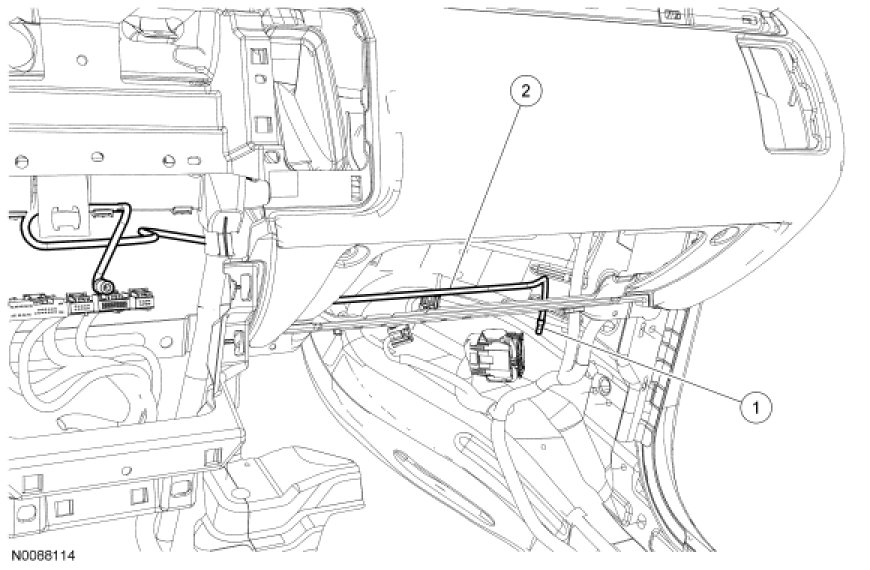

NOTE: Glove compartment shown removed for clarity.










Removal and Installation

NOTE: This procedure applies to the antenna lead-in cable only. To service the rear antenna cable, cut the old cable ends and tape them to prevent NVH concerns. A new rear antenna cable must be secured along the wiring harness, without damaging the insulation.

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).

2. NOTE: Pull the carpet back to access the antenna connection.

Disconnect the antenna connection at the RH kick panel.

3. Lower the glove compartment completely.

4. Disengage the push-pins and remove the AM/FM antenna cable.

5. To install, reverse the removal procedure.
